The ore being mined at Empire and Tilden were once considered worthless rock as our technology was not able to extract the iron bearing material.Today only low grade ore like these are mined in the United States. If this technology were not developed we would have been forced to look elsewhere for our iron supply, as we do with our copper supply. The Tilden, in addition produces non-magnetic hematite ore. The hematite pit lies in an area 2 miles long by 1/2 mile wide. From this one pit the Tilden holds 300 million tons of ore yet to be processed. The newly opened (1989) magnetite pit at Tilden contains approximately 60 million tons of ore, or about 15 years of production.

Processing Low Grade Iron Ore
The mineral and rock is first stripped by blasting the rock with explosives and removing it with 190 ton capacity trucks.. The ratio of mineral to rock is 1.5 to 1 for hematite and 1 to 1 for magnetite. The material is stored in a covered building after being reduced to no greater than 10 inches in diameter in a primary crusher.

The material is about 35% iron and therefore in order to produce 6 million tons of pellets requires 30 million tons of ore and rock combined. At Tilden, where both of these minerals are found, only one can be processes through the mill at a time, which depends on customer needs.

The next step in the process is Grinding. Using 27' x 14' mills, either material can be ground to the consistency of beach sand or powder, without the addition of steel balls as is often used in other milling operations. Concentrating Magnetite only requires the addition of water and a strong magnet to separate the iron from the waste rock. This operation is performed in seperators known as cobbers and finishers. The waste rock and water is removed and becomes the mines "tailings".

Seperating non-magnetic hematite involves an entirely different process. Caustic soda and cooked corn starch are used during and after grinding, along with water to collect all the fine-grained ore together in three-hundred 500 cubic foot flotation cells, called deslime thickeners. The thicker ore-starch-soda material sinks and the water and waste rock float off the top and are removed as tailings.

At this point the material is dewatered and mixed with the proper amount of limestone and dolomite according to customer requirements. Steam is added to the hematite process as it is harder to dewater.

In the pelletizing process the ore is rolled with bentonite clay (a binder) to marble size pellets in 12' x 33' balling drums. The produce at this time is called "green balls" and is then conveyed to a rotary kiln fired at 2200 degrees Fahrenheit. The kilns at Tilden are 25' x 160' and can burn natural gas, coal or oil as a fuel.

The pellets are cooled and transported to the stockpile. The Tilden stockpile has a capacity of 3 million tons of pellets. The loading yard can load 450 ore cars per day. The tailings at Tilden are conveyed to Gribben Basin where the water is recycled and reused and the tailings remain in the impoundment.

History and Current status of the Empire and Tilden Mines
The Empire Mine was first opened in 1964 and was enlarged in 1966, 1975 and again in 1980. Empire Iron Mining Partnership is located in Palmer, Michigan and the mine produces 8 million tons of Magnetite pellets per year. The Cleveland-Cliffs Iron Company manages the mine and is a 22.5 percent owner. Other owners are Inland Steel Company, LTV Steel Company and Wheeling-Pittsburgh Steel Corp. The Chicago & Northwestern hauled all the ore from this facility to the docks in Escanaba until 1989 when the LS&I began to haul ore as well to Presque Isle. Today the C&NW traffic is handled by the Wisconsin Central.

The Tilden Mine began operations in 1974 and capacity was doubled in 1979 to 8 million tons per year. In 1989 the mine added processing capability to produce Magnetite ore by opening a new pit north of the main Hematite pit. Tilden Mining Company L.C. is located south of Ishpeming, Michigan and the mine produces 7 million tons of iron ore pellets per year. The Cleveland-Cliffs Iron Company manages the mine and is a 40 percent owner. Other owners are Algoma Steel Inc. and Stelco Inc. The Tilden employs almost 1000 employees and contributes over 40 million dollars a year into the local economy just in paychecks. All ore from the Tilden is hauled by the LS&I.

Click here for a description of Hematite
Click here for a description of Magnetite
Click here to learn about all the uses for Bentonite
Click here to learn more about Dolomite

Cybertour Introduction
Our cybertour runs from Eagle Mills Yard down to the Empire Mine and then on to the end of the line at the Tilden Mine. All of the photos simulate what you would see if you were in the cab of the "Tilden Job". If you started your tour here first you may want to take part I of this tour from Presque Isle to Eagle Mills Yard when you are finished, or start there first to take the whole ride down the line. Many, many thanks to Ed for sharing his wonderful photos for all of us to enjoy. (KEMusser)

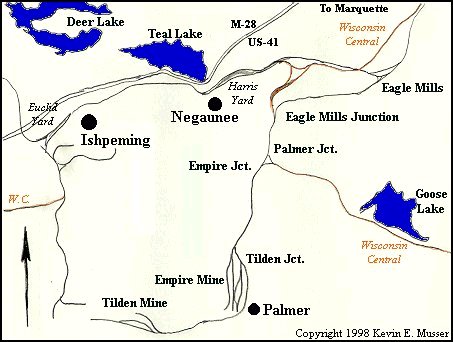

If you would like a copy of the map below at higher resoultion without the red dots, click here.

Directions for the Cybertour

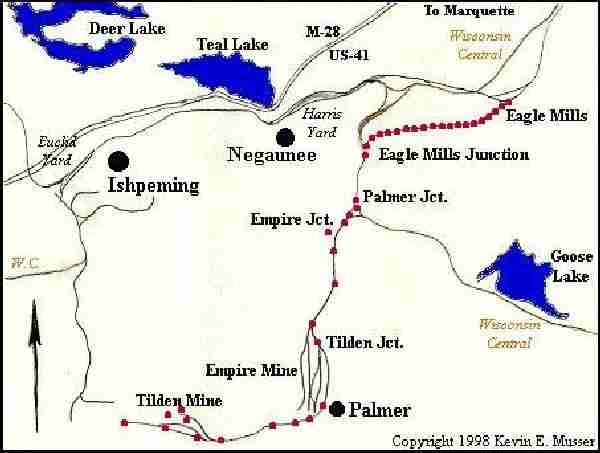

The red dots on the map below reflect the general location of the photos. You can click on them to go directly to the location or follow the links below. As we are simulating the "Tilden Job" on this Cybertour, to make the most of the tour start at the Yard and proceed to Tilden Mine. Use your BACK button to return to the map.
